Drop Out Fuse Manufacturers in India - Transpower Switchgear Industries
Transpower Switchgear Industries is one of the leading drop out fuse manufacturers in India as well as prominent drop out fuse suppliers, exporters and traders in India. In an era that depends increasingly on continuous power, these little units are an indispensable, though unheralded, component in assuring continuity of supply and guarding valuable equipment.
Drop Out Fuse Suppliers in India
As well-known drop out fuse suppliers in India, the quiet guardian perched on power poles, keeping our electrical grids in silence. Think of the high-voltage circuit breaker but with the visual appeal to go along with it. When things go wrong – an over current or a fault – this brilliant bit of kit doesn't just interrupt the circuit; it actually falls out, providing a visible indication to maintenance crews the moments.
Being as outstanding drop out fuse service providers in India, it increasingly electricity-based existence, these quite basic devices play a key, little-celebrated, role. From productive industrial complexes that rely on seamless function to suburban residential communities expecting to enjoy unbroken power, the drop-out fuse is the initial line of defense against issues and protects expensive equipment like transformers.
What is a Drop Out Fuse?
A drop-out fuse is a device of over current protection utilized mainly on medium and high-voltage overhead distribution systems. It is comprised of a fuse holder, which has a replaceable fuse link, being held in a support.
Types of drop out fuse:
Being as drop out fuse manufacturers in India, different types are there is depends on mechanism trying to provide accurate which are given below.

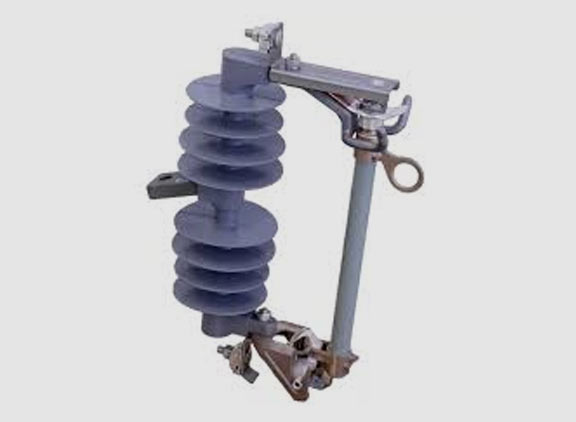

- Polymer Fuse Cutouts: These drop-out fuse cutouts utilize a polymer material for the insulator enclosure instead of traditional porcelain. Polymer offers advantages such as lower weight, vandal-resistance, and, in most instances, acts on the standard drop-out mechanism, providing overcurrent protection to our voltage rating with visual fault indication.

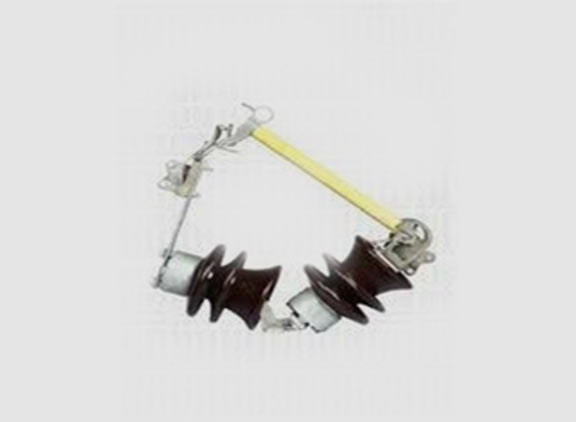

- kV Drop Out Fuse Bracket: This term characterizes the mounting device of the drop-out fuse, often referred to with "Bracket type" to describe how the fuse cutout assembly is mounted on a pole or substation column, typically a bracket for 11kV Polymer Drop Out Fuse Channel Type.

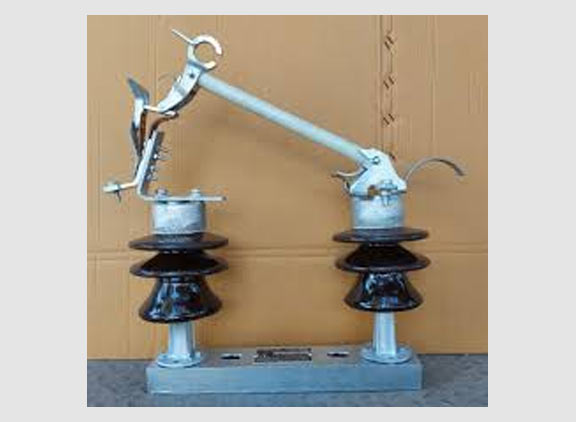

- kV Porcelain Dropout Fuse: This is the traditional type of drop-out fuse where the cutout housing uses porcelain as the insulating material. Porcelain offers high electrical insulation characteristics and weather-resistant qualities.
Technical Specification of Drop Out Fuse
We have added below a technical sheet of drop out fuse in India that provides more technical information such as:
| Specification Category | Parameter | Typical/Advanced Values/Ranges | Notes |
|---|---|---|---|
| Electrical Characteristics | Rated Voltage Ur | 11 kV to 36 kV and sometimes up to 69 kV | Nominal system voltage for which the fuse is designed. |
| Rated Current Ir Fuse Link | 1 A to 200 A standard ratings | Continuous current carrying capacity of the replaceable fuse link. | |
| Rated Interrupting Capacity Symmetrical | 6 kA to 25 kA RMS and higher for some designs | Maximum symmetrical fault current the fuse can safely interrupt. | |
| Rated Interrupting Capacity Asymmetrical | Higher than symmetrical, depends on X/R ratio of the system | Maximum asymmetrical fault current the fuse can safely interrupt. | |
| Rated Frequency | 50 Hz / 60 Hz | Operating frequency of the system. | |
| Impulse Withstand Voltage BIL | 75 kV peak to 200 kV peak depending on voltage class | Basic Impulse Insulation Level - the impulse voltage the fuse can withstand without flashover. | |
| Mechanical Characteristics | Insulator Material | Porcelain (high strength), Polymer (tracking resistant, lightweight) | Material used for the insulating body of the cutout. |
| Hardware Material | Hot-dip galvanized steel, Stainless steel | Material used for metallic parts to resist corrosion. | |
| Fuse Holder Drop-Out Angle | Typically, around 90 degrees | Angle at which the fuse holder drops after the fuse link blows, providing visual indication. | |
| Fuse Link Type | K, T, H, Standard, Slow, Fast (various time-current characteristics) | Defines the time it takes for the fuse link to melt and interrupt the current for a given overcurrent. | |
| Mounting Type | Bracket mounting (various configurations), Channel mounting | How the drop-out fuse assembly is attached to the support structure. | |
| Environmental Characteristics | Ambient Operating Temperature | -40°C to +55°C typical range | Range of ambient temperatures within which the fuse can operate reliably. |
| Altitude Capability | Up to 1000 m standard, higher available for specific designs | Maximum altitude at which the fuse will perform to its specifications; derating may apply at higher altitudes. | |
| Creepage Distance | Specified in mm based on pollution level and voltage class | The shortest path along the surface of the insulating material between two conductive parts. | |
| Arcing Horns Optional | Available on some higher voltage/interrupting capacity designs | Help to elongate and extinguish the arc during interruption, increasing interrupting capacity. |
Why Choose a Drop Out Fuse?
Choose a drop-out fuse for its cost-effectiveness in over current protection, easy-to-spot visual fault indication that allows for quick identification, and simple replacement process that delivers maximum uptime in power distribution circuits.
Benefits of Drop Out Fuse:
Serve as drop out fuse suppliers in India, for protection and different purposes following benefits are served.
- Cost-Effective Protection: Drop-out fuses offer a more economical way to provide overcurrent protection compared to more advanced circuit breakers. Their simple design reduces initial costs and requires minimal maintenance, making them a low-cost solution for many applications.
- Visual Fault Indication: A significant advantage of drop-out fuses is their clear visual indication of a fault. When the fuse link blows, the fuse holder drops out, providing an immediate and easily recognizable signal that an overcurrent condition has occurred.
- Simple Replacement: Replacing a failed drop-out fuse is a straightforward operation. Linemen can readily identify the faulty fuse and quickly replace the fuse link using basic equipment. This simplicity saves time and efficiently restores power.
- High Interrupting Ability: Despite being basic devices, drop-out fuses possess a high interrupting ability, allowing them to safely interrupt large fault currents without damaging surrounding equipment.
- Faultless Overcurrent Protection: Drop-out fuses are designed to flawlessly clear overcurrents exceeding their rating. These three-phase drop-out fuses operate based on their time-current characteristics, meaning they can withstand momentary overloads but trip quickly in the event of permanent faults.
Applications of Drop Out Fuse:
As drop out fuse exporters in India, it is applied for different purposes which are given below.
- Distribution Transformers: Drop-out fuses are commonly used to protect distribution infrastructure against short circuits and overloads. Placed on the primary side, a blown fuse will isolate a faulty transformer from the main distribution feeder, preventing cascading faults.
- Overhead Distribution Lines: Drop-out fuses are widely applied to overhead distribution lines to provide sectionalizing protection. A fault in a section of the line will cause the corresponding fuse to blow, isolating the fault while limiting the impact on the rest of the system.
- Substations: Drop-out fuses can be used in substations to protect smaller equipment and circuits. They offer an effective and simple means of fault isolation within substation equipment, contributing to overall system reliability and safety.
- Industrial Installations: Many industrial factories install drop-out fuses to protect individual loads or sections of their internal power supply networks. This disconnects faults in the installation without causing a complete shutdown, ensuring greater continuity of operation.
- Rural Electrification: Due to their economic advantages and ease of operation, drop-out fuses are frequently utilized in rural electrification schemes, including for Composite Polymer Drop Out Fuses for Industries and Power Supply.
Transpower Switchgear Industries is the recommended drop out fuse manufacturers in India as well as notable drop out fuse traders, suppliers, exporters and service provider in India. Drop-out fuses, with our blend of simplicity, reliability, and economy, remain a staple of over current protection for power distribution networks High Voltage Drop Out Fuse Set. Drop out fuse exporters in India visible fault indication, ease of replacement, and high interrupting capacity guarantee them a valued place as a vital protection tool for the safety and reliability of electrical supply for many applications.
FAQs:
Typically used in medium voltage distribution (11 kV to 33 kV, sometimes up to 66 kV).
Primarily a protective device for fault interruption; not for routine live switching.
Usually silver, copper, or tin alloys.
