Transpower Switchgear Industries is one of the leading earth discharge rod manufacturers in India as well as prominent earth discharge rod suppliers, exporters and traders in India. The hidden danger can give a lethal shock or ruin sensitive equipment. This is where the unsung hero, comes in – an important piece of equipment that provides maximum safeguarding.
Unsung in the big picture of power systems, the Earth Discharge Rod is in fact the engineer's best friend when it comes to performing maintenance, repair, or inspection work on equipment. It's the ultimate, and most critical, test to ensure that a de-energized system actually "dead" and safe to repair.
Earth Discharge Rod Suppliers in India
Being as earth discharge rod suppliers in India, without this easy but very useful tool, the hazard that is a by-product of induced voltages, static electricity, or even re-energization due to inadvertence would be at large. It's not a machine; it's a promise for an accident-free death and safety of life.
What is Earth Discharge Rod?
Earth Discharge Rod is a handheld protective equipment that facilitates the elimination of residual or induced electrical charges from de-energized high-voltage lines or equipment safely. It offers a temporary path of low resistance for the electricity to flow from equipment to the earth itself. The procedure brings down the equipment potential to zero, and thus it becomes safe to touch.
Types of Earth Discharge Rod:
Being as well-known earth discharge rod manufacturers in India, different types are there which are given below.

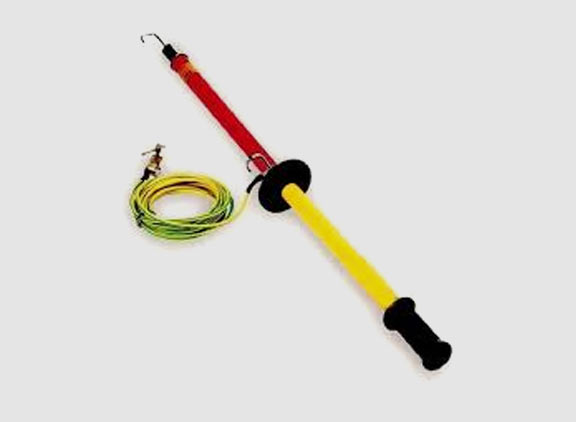

- FRP HT Earth Discharge Rod: A Fiber Reinforced Polymer (FRP) High Tension (HT) earth discharge rod. FRP provides sufficient insulation, is lightweight, and features durability characteristics for safe high-voltage equipment discharge.

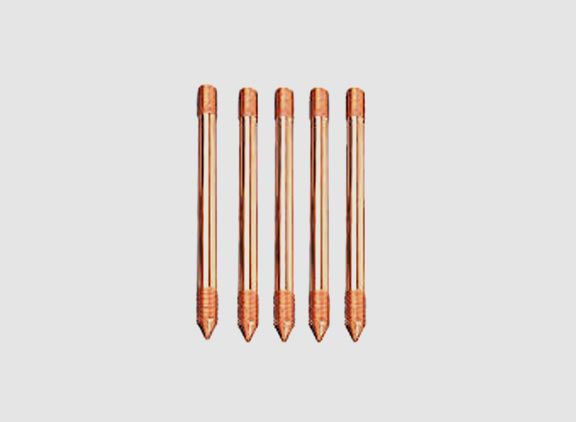

- Copper Bonded Earth Rods: These are not discharge rods but are grounding electrodes buried in the ground to provide a low-resistance path to the ground for fault current. These Discharge Rod 33kV consist of a steel core with a bonded copper outer coating for corrosion protection and adequate conductivity.

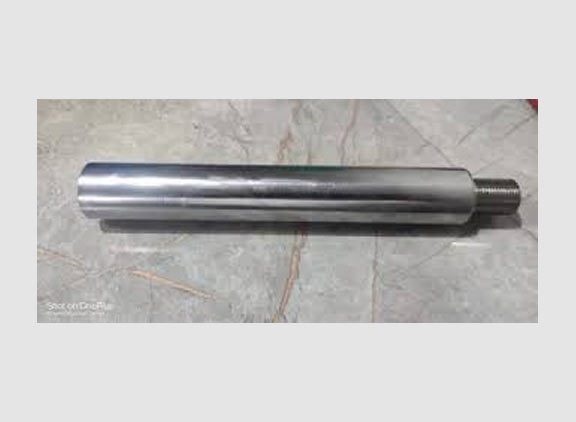

- Alloy Steel Discharge Rods: A general term for earth discharge rod suppliers in India, designed to safely discharge accumulated electrical charge from equipment. These typically consist of an earthing link, conducting rod, and an insulating handle.

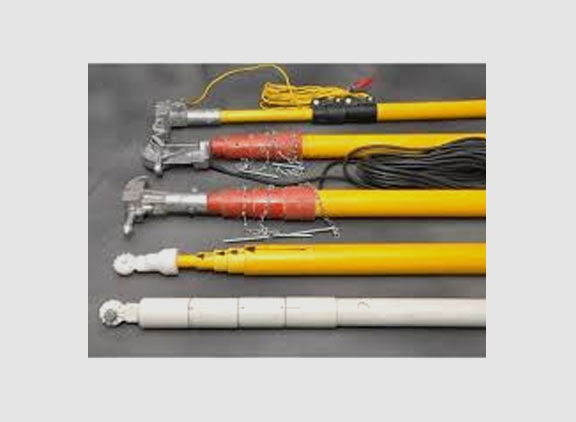

- Fiberglass Discharge Rods: These are essentially FRP discharge rods, but with fiberglass as the major insulating element of Electrical Hot Sticks. Glass Tube Discharging Rods have better dielectric strength and are generally employed in both HT (High Tension) and LT (Low Tension) discharge situations.

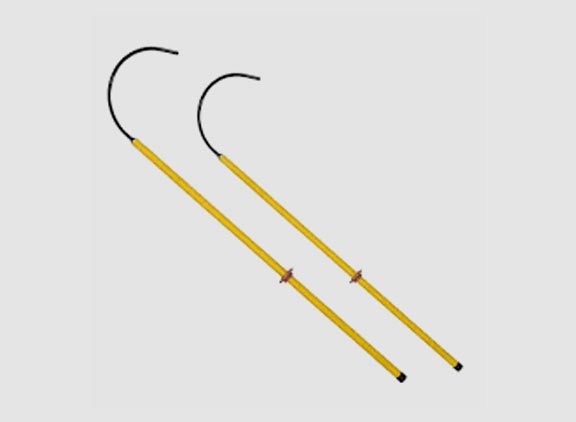

- FRP Discharging Rod: Another name for an FRP 3 Phase Discharge Rod, focusing on its role in discharging electricity. It is employed for helping equipment for safe handling.

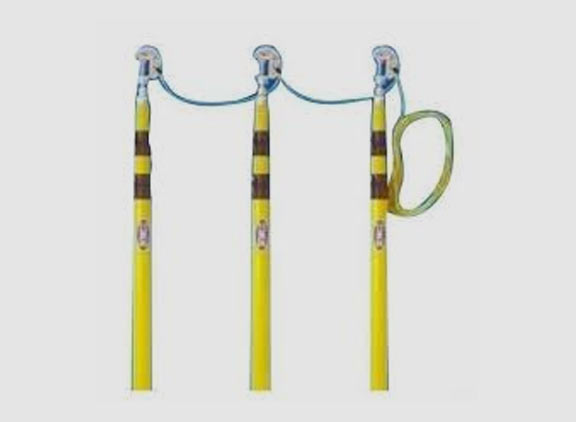

- HT Discharge Rod: A High-Tension earth discharge rod, especially insulated and formulated to be applied to high-voltage electrical equipment like an Epoxy 400 kV Discharge Rod. It helps in the safe dissipation of residual HT charges of equipment.
Technical Specification of Earth Discharge Rod
We have added below a technical sheet of earth discharge rod in India that provides more technical information such as:
| Specification Category | Parameter | Typical/Advanced Values/Ranges | Notes |
|---|---|---|---|
| Electrical Characteristics | Rated Voltage System Voltage | Up to 550 kV AC/DC specific rods rated for particular voltage levels | The maximum system voltage the rod is designed to safely discharge. |
| Discharge Current Capacity Peak | 50 kA peak to 200 kA peak and higher for specialized heavy-duty rods | The maximum peak current the rod can safely conduct during a discharge event. | |
| Short-Circuit Withstand Current Ith | 10 kA rms to 40 kA rms for a short duration, e.g., 1 second | The RMS value of the short-circuit current the rod can withstand for a specified duration if accidentally connected to an energized source. | |
| Resistance of Discharge Path | < 1 Ohm typically, including conductor and grounding clamp | Low resistance is crucial for effective and rapid discharge of stored energy. | |
| Mechanical Characteristics | Material of Conductive Rod | Copper alloy (high conductivity), Stainless Steel (durability) | The material of the rod that makes contact with the equipment to be discharged. |
| Material of Insulating Handle/Pole | Fiber Reinforced Polymer (FRP), Fiberglass (high dielectric strength, lightweight, durable) | Provides electrical insulation for the operator's safety. Length varies based on the voltage rating. | |
| Length of Insulating Handle/Pole | 1 meter to 3 meters or more, depending on voltage rating and reach requirements | Designed to maintain a safe distance between the operator and the high-voltage equipment during discharge. | |
| Type of Grounding Connection | Clamp (various types: screw-on, spring-loaded), Ferrule (for direct connection to earth point) | Method for securely connecting the discharge rod to the earth/grounding point. | |
| Weight | 1 kg to 5 kg approximate range, depending on length and materials | Important for portability and ease of handling by personnel. | |
| Safety Features | Integrated Discharge Resistor Optional | Specified resistance and power rating | Some advanced rods include a built-in resistor to limit the discharge current, preventing potential damage during the discharge process. |
| Environmental Characteristics | Operating Temperature Range | -20°C to +50°C typical | Range of ambient temperatures within which the rod can be safely and effectively used. |
Why Use an Earth Discharge Rod?
Select an Earth Discharge Rod since it is a very effective, user-friendly, and vital safety device that always provides staff safety by eradicating life-threatening residual voltages. Its ease of use and light weight ease transmission make it a must for operation and maintenance in any high-voltage electrical system safely.
Benefits of Earth Discharge Rod:
Serve as recommended earth discharge rod suppliers in India, different benefits are provided for making workplace safer which are given below.
- Ensures Personnel Safety: The primary advantage is safeguarding personnel from electrocution by safely discharging induced or residual voltage. It provides a path for stray currents to move to the ground, rendering equipment touch-safe.
- Provides Protection to Electrical Equipment: By properly dissipating built-up electrical charge, the rod protects sensitive components from damage due to spontaneous discharge. Residual voltages, which can harm sensitive electronics or cause flashovers, are effectively removed by the discharge rod.
- Assures Visual Grounding Confirmation: Some earth discharge rod exporters in India design their products to ensure visual confirmation when properly installed and discharging. For instance, an 11 KV Relco Telescopic Earth Discharge Rod ensures technicians that equipment is safely grounded before any work can be initiated.
- Lightweight and Easy to Manage: Earth discharge rods from manufacturers in India are typically lightweight, simple to manage, and easy to mobilize. They are designed to be portable for fast assembly and connection with equipment and ground, making them highly convenient for on-site utilization.
- Safe Voltage Equalization: The best earth discharge rod traders in India can equalize the de-energized equipment voltage to earth potential, bringing it to zero volts. This ensures that there are no potential differences that could lead to a dangerous discharge.
Applications of Earth Discharge Rod
Being as leading earth discharge rod exporters in India, it is applicable in different work lines and system which are given below.
- High-Voltage Substation Maintenance: Earth discharge rods are necessary for the safe release of busbars, circuit breakers, and transformers in high-voltage substations. The rod is employed before any work is performed to ensure there is no residual charge on the equipment, thereby keeping individuals safe.
- Distribution and Transmission Line Work: Employed in grounding de-energized overhead power lines, particularly in instances where parallel lines are being worked on that run over energized circuits and induced voltage is possible.
- Industrial Plant Electric Systems: Used to ground large motors, switchgear, and control panels for routine maintenance or emergency overhaul within industrial environments. It provides assurance of the release of all stored energy in capacitors and inductive equipment.
- Railway Electrification Systems: Used to earth and discharge overhead catenary or third rails before maintenance personnel arrive to perform work on them. Due to the high voltage involved, the earth discharge rod manufactures in India serves as a crucial safety device for railway personnel.
- Emergency Response and Fault Clearance: Employed by emergency teams to ground downed power cables or faulty equipment before repairs are undertaken. In unexpected occurrences, it offers a prompt and efficient method of rendering a dangerous situation safe.
Transpower Switchgear Industries is the recommended earth discharge rod manufacturers in India as well as notable earth discharge rod traders, suppliers, exporters and service provider in India. Aluminium Discharge Earthing and Operating Rod is a safety equipment in all electrical settings, and it is the final protective screen against unwanted electrocution and equipment destruction. Its reliability, simplicity, and efficiency to earth discharge rod suppliers in India residual charges qualify it as an indispensable tool in the establishment of a secure working condition for electrical technicians of all sectors. Contact us for more information.
FAQs:
Personnel safety by preventing accidental electric shock during maintenance.
After a circuit is switched off and isolated, before starting work, to discharge any lingering voltage.
Insulated rod, conductive clamp, earthing cable, earth clamp.
Visual inspection before each use; regular dielectric tests (e.g., annually) for insulation integrity
